- Floorplan - 2015 Heartland Landmark Savannah
-
Sleeps 4
-
3 Slides
-
Rear Living AreaKitchen Island
-
40ft Long

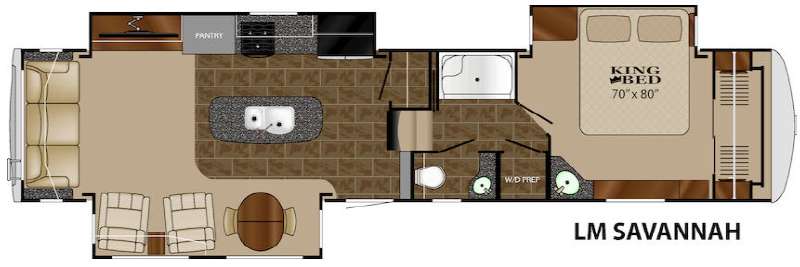

Savannah Floorplan
Specifications
Sleeps | 4 | Slides | 3 |
Length | 40 ft | Ext Width | 8 ft |
Ext Height | 13 ft 3 in | Hitch Weight | 3130 lbs |
GVWR | 16250 lbs | Fresh Water Capacity | 104 gals |
Grey Water Capacity | 90 gals | Black Water Capacity | 45 gals |
Tire Size | LT235/85R16-G | Furnace BTU | 40000 btu |
VIN | 5SFBG412XFE287920 |
Description
The Savannah Landmark fifth wheel will have you saying, "WOW!" with one peak inside. This triple slide unit is all about making you feel at home. As you step into the unit you are greeted with an open living and kitchen area with double slides opposite one another. One slide features two swivel rocker recliners with an end table between, and a round dinette. There is a rear sofa with side tables and an overhead storage cabinet for your convenience also.
The opposite living/kitchen area slide features a flat screen television, kitchen pantry for your dry goods, a three burner range, and double door refrigerator. There is also a kitchen island with a double sink for easy clean-up. You will also find an additional storage closet nearby.
Next, take two steps up to a wonderful bed and bath suite. There is a private toilet area with vanity and sink at the top of the stair along with a large shower across the hall. A closet has been prepped for a washer/dryer in case you would like to add a stackable unit for convenience.
Lastly, step into a large spacious bedroom with king bed slide including more storage. There is a large front wardrobe with sliding doors, plus more drawer storage opposite the bed. There is also a corner sink, and so much more!
Features
- Pull Out Storage Drawer in Steps
- Three Decors to Choose From
- Amish-Crafted Natural All-Hardwood Cabinet Stiles, Fascia, Doors and Drawers with Hand Rubbed Bordeaux
- Hardwood Window Surrounds
- Hidden Cabinet Hinges
- All Cabinet Frames are Pre-Drilled,
- and Screwed Together - not stapled
- Baltic Birch Drawer Construction (Real Wood)
- Deluxe Ball-Bearing, Full Extension Drawer Guides
- with Drawer Catches
- Custom Crafted Wardrobe with Cedar Lined Built-In Storage Rack and Dresser
- 32” Deep Bedroom Slide Rooms featuring one of the largest bedrooms available (N/A on Grand Canyon)
- Custom Crafted Tall Dresser
- Washer/Dryer Prep – with Closet for a Stackable Washer/Dryer
- Numerous Hardwood Drawers and Doors
- provide Unmatched Storage
- 6’-4” Bedroom Ceiling Height Throughout
- Colossal 18 Cubic Foot Under-Bed Storage
- Deluxe Memory Foam Pillow Top King Size Bed with Pillow Package
- Two Windows in Bedroom for Cross Breeze (N/A in Grand Canyon)
- Deluxe Headboard Design
- Welcome Back Light
- Dyson Cordless Vacuum Cleaner
Exterior
- High Gloss Laminated Fiberglass Sidewalls
- Double-Welded Aircraft Quality Aluminum SUPERSTRUCTURE
- Cage Construction Both 1.5” and 3” Tubular Design
- Deluxe Electric Awning w/LED Light
- Drip Rail with Down Spouts
- Frameless, Tinted Safety Glass Windows with UV Inhibitor
- Ventilation Slider Side Windows
- Properly Placed Torque Louvered Windows.
- Running Lights & Exterior Lights
- Entrance Step Light - Under Steps
- Amber Porch Light Above Entrance Door
- Automotive/Aerodynamic Styled Rear Cap
- LED Tail Lights
- Engineered Molded Wind Deflection Fins
- Dent-Resistant Material
- Rear Ladder for Easy Roof Access
- Exterior Entertainment Center Prep
- One-Piece Seamless EPDM Rubber Roof
- 12” I-Beam Frame with Rust Prohibitive Coating
- Hydraulic Landing Gear (14X Faster than Electric)
- Heavy-Duty Load Range G 16” Goodyear Tires
- Deluxe 16” Aluminum Rims
- Recessed 16” Steel Rim Spare Tire
- E-Z Flex Rubber Dampening Suspension by Dexter
- 7,000 lb. Dexter Axles with E-Z Lube™ Hubs
- Four Heavy Duty Shock Absorbers
- 2 x 12” Nev-R-Adjust Brakes By Dexter
- Correct Track Alignment System
- Monogrammed Fender Skirts
- 2 x 40# LP Bottles
- Standard Exterior Fade-Resistant UV Protected Vinyl Graphics
- Linc Multipurpose Wireless Remote System with LCD Touch Screen
- Operates Slides, Power Awning, Front Landing Gear and Step Light
- One Touch Six Point Auto Leveling System
Underbelly
- Seamless Corrugated Underbelly Material
- Heated and Enclosed Underbelly
- Heated and Insulated Holding Tanks & Gate Valves
- Dual Insulation System (Flexfoil R-14 and a Formaldehyde Free Blanket of R-14)
- Universal Docking Center (U.D.C.) with High Pressure Fresh Water Fill System
- Color-Coded Water Lines with Limited Warranty
- 5.7 Shurflo Extreme™ Water Pump
- Quick & Easy Winterization System in U.D.C.
- Upgraded 80 AMP/12V DC Converter
- 50 Amp Marine Cord with Electric Power Cord Reel
- Dual Battery Box - One 12V Battery (room for two)
- Convenient Battery Shut-Off Switch
- 110V Exterior Electrical Receptacles
Heating
- Seamless One Piece In-Floor Heat Duct
- 42,000 BTU Furnace
- Heated Stool Room (Most Models)
- Whisper Quiet Air Conditioner System Featuring
- Fully Ducted, Dual 15,000 BTU high efficiency A/C units.
- Rain Sensor Fantastic™ Fan Thermostat in Kitchen (Moves 1,000 cu. ft. of air per minute)
- Air Conditioned Stool Room (most models)
- Walls - R11 Insulation
- Roof – R38 Insulation
- Floor System - R40 Insulation
- Slide Room Floors - Radiant Technology R38 equivalent
- 6’-5” Ceiling Height in Main Slide
- Hardwood Decorative Slide-Out Fascias
- Hydraulic Operating System w/Independent Switches
- Double Bulb/Double Squeegee Seals with One-Piece Weather-proof Floor Pan
- Cabinets Above Sofa
- Hydraulic Manual Override System
Interior Standards
- Deluxe Upholstery Fabrics
- Deluxe Pillow & Bedspread Package
- Support Struts on Overheads
- 4” Recessed Halogen Lighting Package
Entertainment & Connections
- 40” or 46” LCD TV (depending on model)
- Sound Bar w/ Subwoofer & Bluetooth Compatible
- Cable/Satellite TV Hookups in Bedroom and Exterior Storage Compartment
- Pre-wired for Winegard Trav'ler Satellite System
- Large Computer Desk/Work Station (most models)
- Decorative Mullion Door
- Blueray Player w/ Wireless Smart Technology
Living Room
- Decorative Glass Inserts in Select Overhead Cabinet Doors
- Upgraded Ultra Leather Recliners (2)
- Ultra Leather Hide-a-Bed Sofa with Air Mattress
- Wrought Iron Sofa Table
- 110V Ceiling Fan
Appliances & Lighting
- 12 Cu.Ft Refrigerator with Raised Wood Fronts
- 3-Burner Cook Top with Under Storage Cabinet
- Matching Solid Surface Cook Top Covers
- Over the Range 30” Convection Microwave Oven
- 12 Gal. Gas/Electric DSI W.H.
- Light Switches
- Water Heater DSI Switch
- Full System Monitoring Panel
- FOR YOUR PROTECTION
- Fire Extinguisher by Entry Door
- Smoke Detector
- LP Gas Detector
- CO2 Detector
- Guide Light Under Entry Step
- Exterior Security Flood Lights
- Break Away Switch
- Deadbolt Lock on Entrance Door
- 120V GFI Protected Outlets
- Fire Escape Windows
- 12V Hitch Light
Kitchen
- True Solid Surface Countertops with Pencil Edge
- Residential, All-Hardwood Cabinets with Hidden Hinges
- Backsplash Behind Oven
- Brushed Nickel Fixtures
- Cold Crack Resistant Flooring
- Deep Double Bowl Residential Stainless Steel Sink
- Boutique Pull Out Sprayer Faucet
- Solid-Surface Sink Covers
- Deep Residential Size Drawers
- Deluxe Ball-Bearing, Full Extension Drawer Guides
- Pots/Pans Storage Cabinet
- Custom Crafted Dinette Table, 2 Stationary & 2 Foldable Chairs with Storage in both the Table and Chairs
- Large, Deep Pantry (N/A with 4 Door Refer)
- Fantastic Fan with Rain Sensor
Bath Area
- One Level Floor for the Entire Suite
- 6’-4” Bath/Bed Ceiling Height
- Cold Crack Resistant Flooring
- 110V Outlets Conveniently Located
- Linen Cabinet Storage (most models)
- True Solid-Surface Countertop with Pencil Edge
- Large Mirrored Medicine Cabinet
- Under mount Sink with solid surface Sink Cover
- Towel Racks, Robe Hook, Tooth Brush Holder and Soap Dish
Commode Room
- Power Roof Ventilation
- Dual 12V Lights with Soft Lighting Lenses
- Real China Commode with Foot Flush
- Extra Wide Recessed Storage Cabinet with Door
- 110V Outlet for Bathroom Night Light
- Heat Duct and Air Conditioning Duct
- in the Commode Room (Most Models)
Shower
- Residential One-Piece Radius Fiberglass Shower with Decorative Glass Door (Floor plan Specific)
- Mini-Meg Shower with Residential Style Shower Door (Floor Plan specific)
- Radius Domed Skylight
- 12V Water Proof Shower Light
- Moryde™ Pin Box
- Generator Prep
- 5.5KW Onan LP Generator
- Slide Awnings
- ABS Hitch Cover
- ½ Body Paint with Fade-Resistant UV Protected Vinyl Graphics
- Two Full Body Paint Custom Painted Exterior Graphic Options
- Outdoor Entertainment Center w/ 32" TV, Stereo/DVD and Speakers
- 12 Volt Freezer/Cooler w/ Pull-out Tray
- 17.5 ? Aluminum Wheels with H Rated Tires
- Disc Brakes w/ Upgraded Axles
- Wireless Back up Camera w/ Monitor
Interior
- 32” LED Flat Screen TV/DVD Combo for Bedroom
- 22 cu ft Residential Refrigerator w/ Stainless Steel Appliances
- Power Theater Seating
- Cloth Recliner and/or Sofa Option Available (ask dealer)
- Programmable Safe
- Glazed Chestnut Cabinetry
- Deluxe Coffered Ceiling
Appliances
- Electric Fireplace
- Stackable Washer/Dryer
- Queen Bed in place of King Bed
- Three Burner Cook Top with Oven (ask dealer)
- Dishwasher(Some Models)
Heating & Cooling
- Fantastic Fan in Bathroom w/Rain Sensor
- Dual Pane Windows with UV Protect. Tint
- Heat pumps Available
Yeti Extreme Weather Package
- The Ultimate for Cold Weather Survival
- Heated Tank Pads
- Radiant Technology Insulation in Front and Rear Caps
- Heated Main Water Line- Low Volt Polymer Heating Cable
Full Timer Package (Generator Prep Required)
- Tire Pressure Monitoring System
- Complete Coach Surge Protector
- 1¼" Accessory Receiver
